SPECIFICATIONS

Adaptive Transom Plate Height: ≤44cm/17.32inch

Bore Stroke: 5.9*4.5cm/2.32*1.77inch

Brand Name: NONE

Condition: New

Control System: Tiller Control,#92 Gasoline

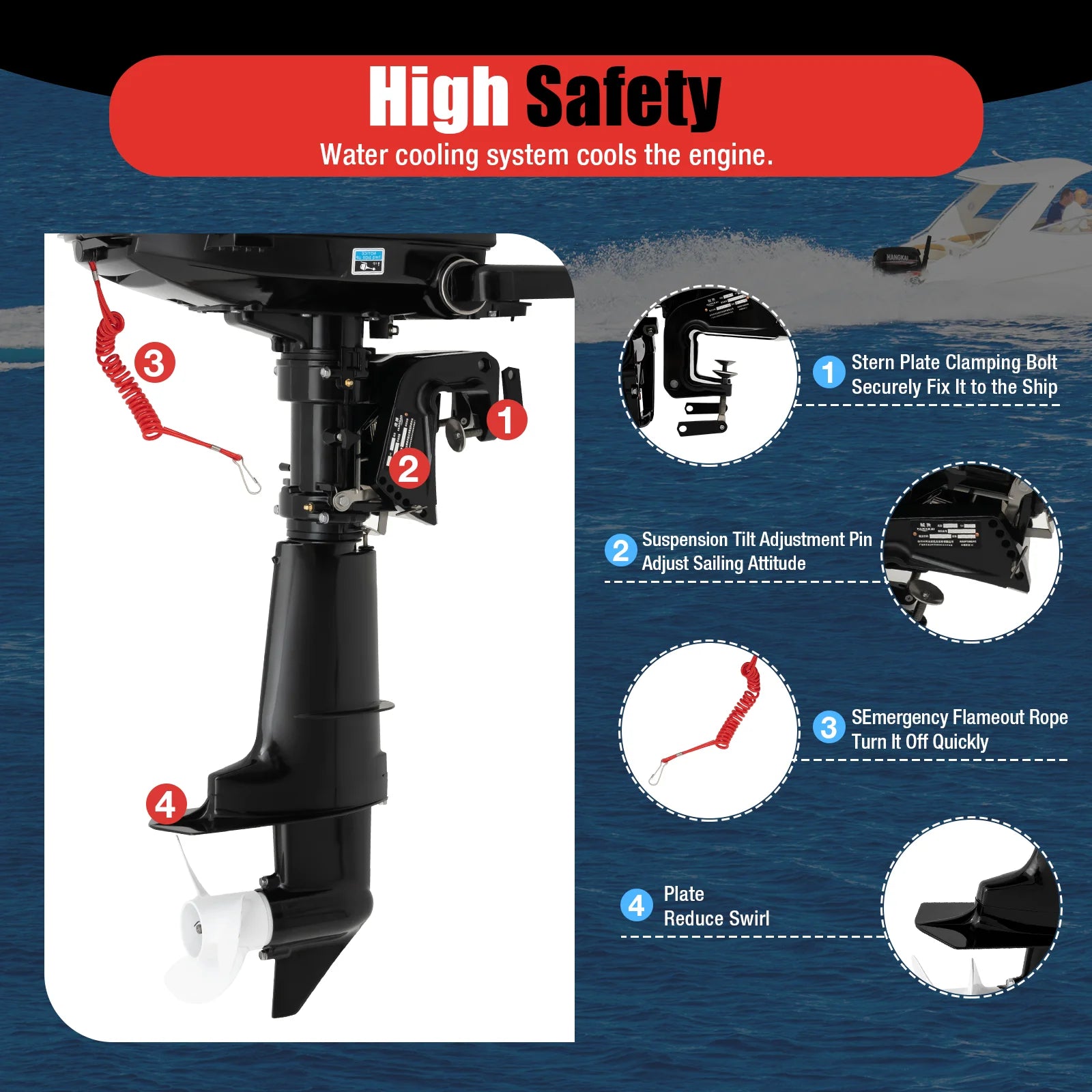

Cooling System: Water-cooling

Cylinder: 1

Cylinders: 1

Displacement: 123CC

Engine: 4 Stroke

Engine Position: Outboard

Fuel Consumption: About 2L/H(0.52gal/H)

Fuel Tank & Pipe Gross Weight: 2.75kg/6.06lbs

Fuel Tank & Pipe Package Size: 40*31*30.5cm/15.75*12.2*12inch

Fuel Type: Gasoline

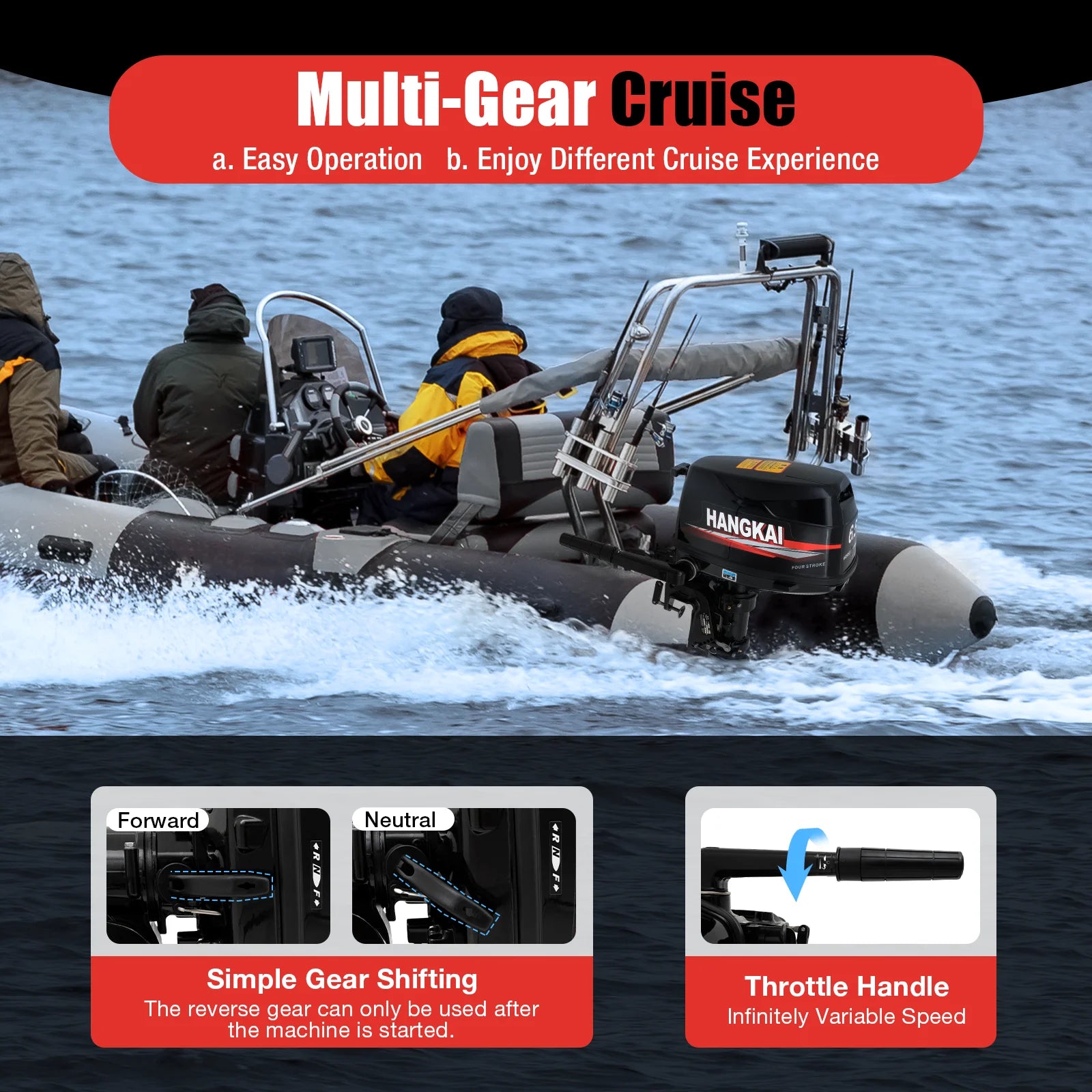

Gear Positions: F-N-R

Gear Ratio: 2.08(27:13)

Handle Length: 15cm/5.9inch

High-concerned chemical: None

Ignition System: CDI

Joystick Length: 35cm/13.78inch

Material: Aluminium Alloy, Rubber

Max.Output: 4.8kw

Mixing Ratio: Pure Gasoline

Oil-pumping Pipe Length: 3.02m/9.9ft

Origin: Mainland China

Outboard Engine Gross Weight: 29.05kg/64.04lbs

Outboard Engine Height: 102cm/40.16inch

Outboard Engine Package Size: 64*38.5*111cm/25.2*15.16*43.7inch

Propeller Diameter: 17cm/6.69inch

Recommended Lubricant: Four Stroke Lubricating Oil

Recommended Propeller Range: 3-7''x9''

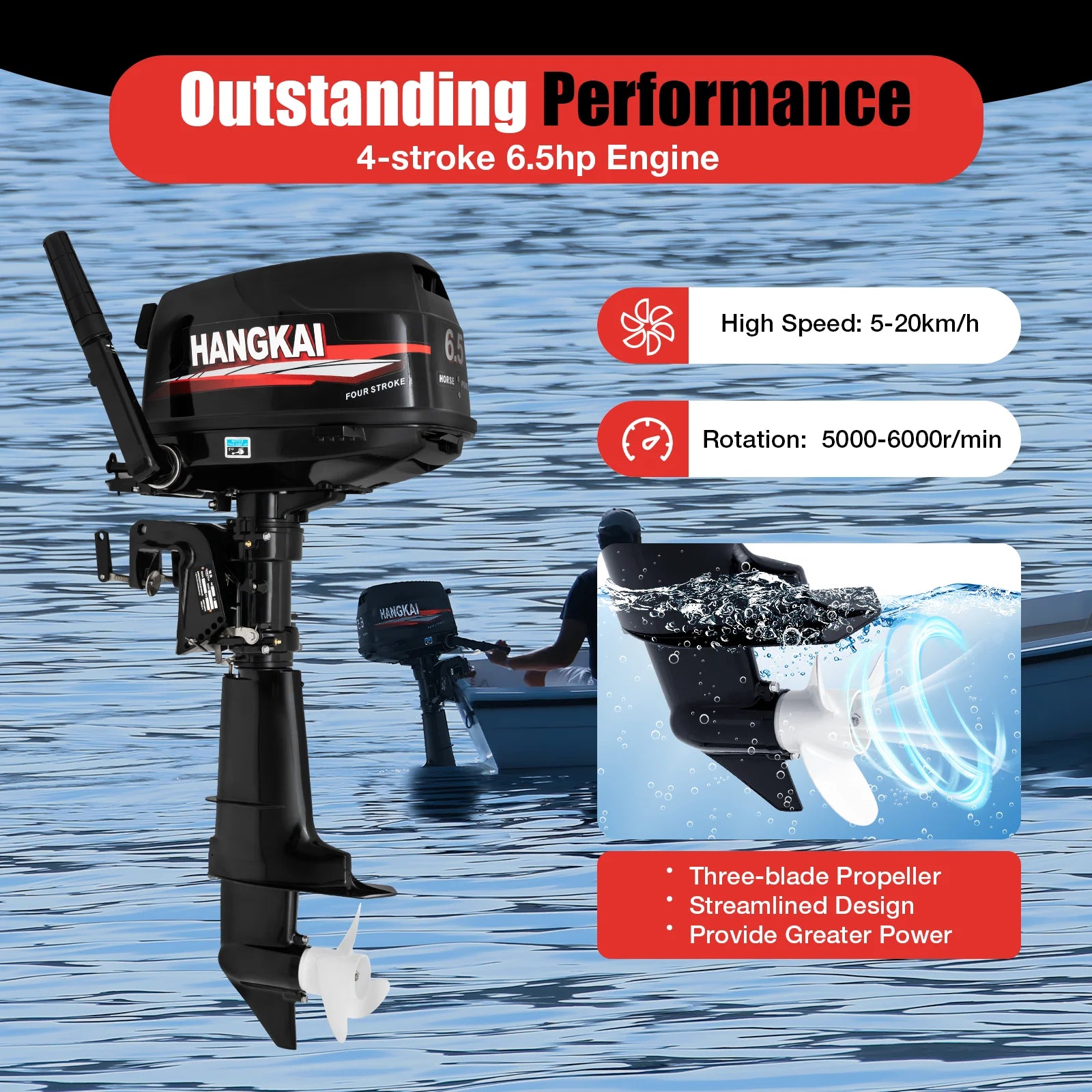

Rotation: 5000-6000r/min

Shaft Length: 38.1cm/15inch

Silencer Cover Size: 41*25cm/16.14*9.84inch

Speed: About 5-20km/h(3.1-12.42Miles/h)

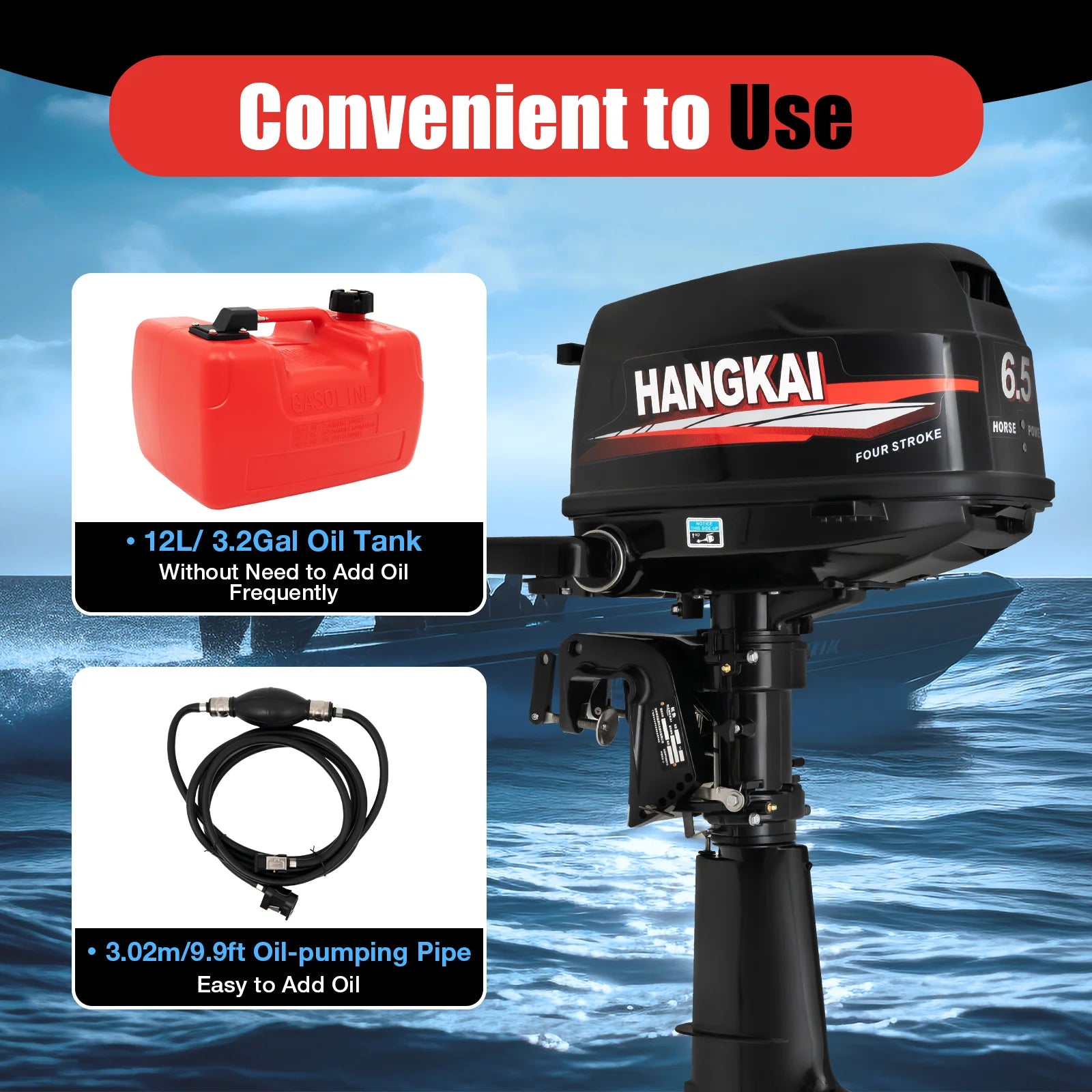

Standard Fuel Tank Capacity: 12L/3.2gal

Starting System: Manual Start

Trim and Tilt System: Manual Tilt

Type: 4-stroke 6.5 HP
